极细同轴线束-生产I-PEX 20320-R30T-11|0.5mm间距|#36-#46极细同轴线束

分类:线束组件

专业代理销售提供:连接器|线束|线缆产品

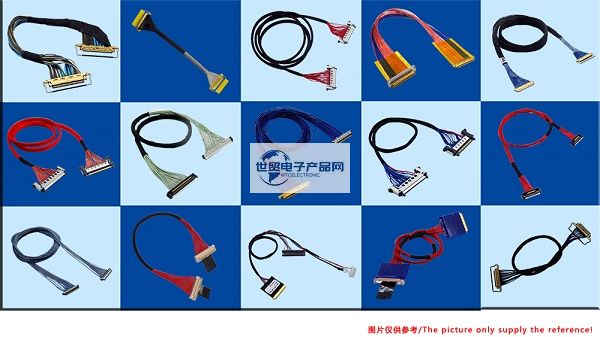

I-PEX 20320-R30T-11极细同轴线束是一款:由I-PEX公司生产的FPL/20320系列中料号为20320-R30T-11|接点间距:0.5mm的极细同轴连接器与可适配的极细同轴线(AWG):#36#38#40 #42 #44 #46通过特有的生产制程工艺组装而成的一种线束产品.敝司(世贸电子产品网)专业生产极细同轴线束-I-PEX20320-R30T-11|0.5mm间距|#36-#46极细同轴线束.下图为敝司所生产的极细同轴线束(Micro Coaxial Cable)线束组立产品部分实物图片(图片仅供参考).

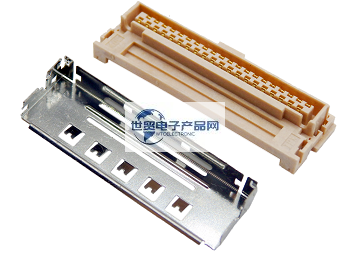

------------------------------------------------------------------------------------------------1、I-PEX 20320-R30T-11|0.5mm间距|36awg-46awg|极细同轴线束所使用的连接器示意图及规格与特点:

Parts Number20320-R30T-11
TypePLUG
Pitch0.5
Pin Counts40
ApplicationNotebook PC & Tablet PC / Flat panel display / Professional TV camera / Digital camera & Video camera / Security & Network camera / Multifunction printer / Printer / AV equipment / Medical equipment / Digital measurement instrument / Robot / Industrial / Projector / Handy terminal / Amusement / Car electronics
Match Rece20323-030E-12

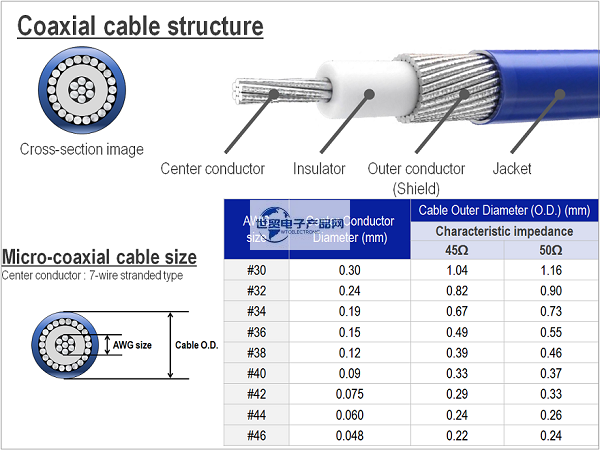

------------------------------------------------------------------------------------------------2、I-PEX 20320-R30T-11|0.5mm间距|36awg-46awg|极细同轴线束所使用的极细同轴线示意图与规格参数:

------------------------------------------------------------------------------------------------3、本公司生产的极细同轴线束所使用的I-PEX公司的极细同轴线连接器料号或型号明细如下:

我司可生产的I-PEX品牌类的同轴线连接器料号清单表
20907-005E-0120907-010E-0120847-020T-0120847-030T-0120847-040T-01
20680-020T-0120680-030T-0120680-040T-0120680-050T-0120680-060T-01
20878-030T-0120878-040T-0120634-210T-0220634-112T-0220634-120T-02
20634-130T-0220634-140T-0220634-150T-0220634-160T-0220454-220T
20454-230T20454-240T20454-250T-0120777-030T-0120777-040T-01
20532-030T-0220532-034T-0220532-040T-0220532-050T-0220974-040T-01
20373-R10T-0620373-R14T-0620373-R20T-0620373-R30T-0620373-R32T-06
20373-R35T-0620373-R40T-0620373-R50T-0620497-026T-3020497-032T-30
20497-040T-3020497-050T-3020473-030T-1020473-040T-1020346-010T-32R
20346-015T-32R20346-020T-32R20346-025T-32R20346-030T-32R20346-035T-32R
20346-040T-32R20438-030T-0120438-040T-0120438-050T-0120320-R30T-11
20320-R40T-1120320-050T-11

------------------------------------------------------------------------------------------------4、极细同轴线束-I-PEX 20320-R30T-01|0.5mm间距|36awg-46awg|极细同轴线束 此产品生产销售商:世贸电子产品网--生产销售提供【极细同轴线束--I-PEX 20320-R30T-01|0.5mm间距|36awg-46awg|极细同轴线束】以及I-PEX、JAE、HRS、HONDA、KEL等品牌生产的极细同轴类连接器与32AWG-46AWG极细同轴线以及1.25PH-0.25PH间距焊接类连接器加工组合而成的Micro Coaxial Cable线束组立产品;如果您想购买或了解我们可提供哪些(极细同轴线束|Micro Coaxial Cable线束组立产品)解决方案,欢迎通过下面方式联系我们.
