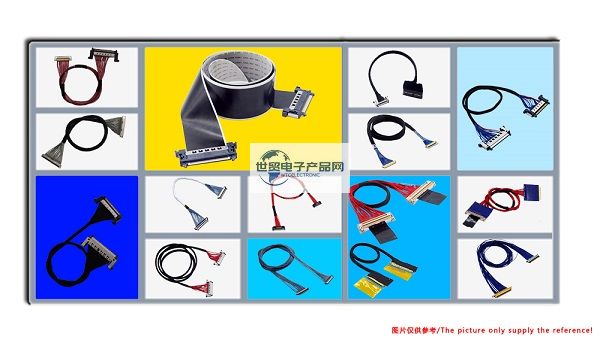

I-PEX20320-050T-11极细同轴线束是一款：由I-PEX公司生产的FPL/20320系列中料号为20320-050T-11|接点间距:0.5mm的极细同轴连接器与可适配的极细同轴线(AWG):#36#38#40 #42 #44 #46通过特有的生产制程工艺组装而成的一种线束产品.敝司(世贸电子产品网)专业生产极细同轴线束-I-PEX20320-050T-11|0.5mm间距|#36-#46极细同轴线束.下图为敝司所生产的极细同轴线束(Micro Coaxial Cable)线束组立产品部分实物图片(图片仅供参考).

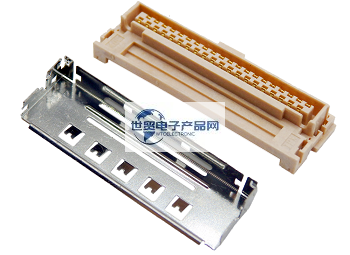

1、I-PEX 20320-050T-11|0.5mm间距|36awg-46awg|极细同轴线束所使用的连接器示意图及规格与特点：
| Parts Number | 20320-050T-11 |
| Type | PLUG |
| Pitch | 0.5 |
| Pin Counts | 40 |
| Application | Notebook PC & Tablet PC / Flat panel display / Professional TV camera / Digital camera & Video camera / Security & Network camera / Multifunction printer / Printer / AV equipment / Medical equipment / Digital measurement instrument / Robot / Industrial / Projector / Handy terminal / Amusement / Car electronics |
| Match Rece | 20323-050E-12 |
-------------------------------------------------------------------------------------------------

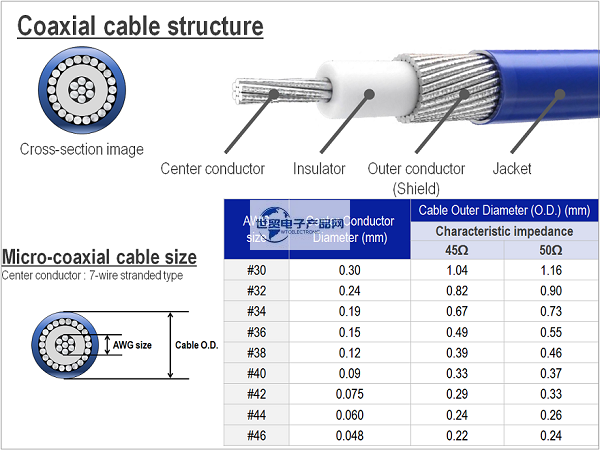

2、I-PEX 20320-050T-11|0.5mm间距|36awg-46awg|极细同轴线束所使用的极细同轴线示意图与规格参数：
-------------------------------------------------------------------------------------------------
3、本公司生产的极细同轴线束所使用的I-PEX公司的极细同轴线连接器料号或型号明细如下：
| 20907-005E-01 | 20907-010E-01 | 20847-020T-01 | 20847-030T-01 | 20847-040T-01 |
| 20680-020T-01 | 20680-030T-01 | 20680-040T-01 | 20680-050T-01 | 20680-060T-01 |
| 20878-030T-01 | 20878-040T-01 | 20634-210T-02 | 20634-112T-02 | 20634-120T-02 |
| 20634-130T-02 | 20634-140T-02 | 20634-150T-02 | 20634-160T-02 | 20454-220T |
| 20454-230T | 20454-240T | 20454-250T-01 | 20777-030T-01 | 20777-040T-01 |
| 20532-030T-02 | 20532-034T-02 | 20532-040T-02 | 20532-050T-02 | 20974-040T-01 |
| 20373-R10T-06 | 20373-R14T-06 | 20373-R20T-06 | 20373-R30T-06 | 20373-R32T-06 |
| 20373-R35T-06 | 20373-R40T-06 | 20373-R50T-06 | 20497-026T-30 | 20497-032T-30 |
| 20497-040T-30 | 20497-050T-30 | 20473-030T-10 | 20473-040T-10 | 20346-010T-32R |
| 20346-015T-32R | 20346-020T-32R | 20346-025T-32R | 20346-030T-32R | 20346-035T-32R |
| 20346-040T-32R | 20438-030T-01 | 20438-040T-01 | 20438-050T-01 | 20320-R30T-11 |
| 20320-R40T-11 | 20320-050T-11 |
-------------------------------------------------------------------------------------------------
4、如何购买或了解I-PEX 20320-050T-11|0.5mm间距|#36-#46极细同轴线束组立产品？：
