线对板连接器-提供兼容Amphenol|安费诺|G88MP24102KEU 线对板连接器替代品

分类:品牌连接器

专业代理销售提供:连接器|线束|线缆产品

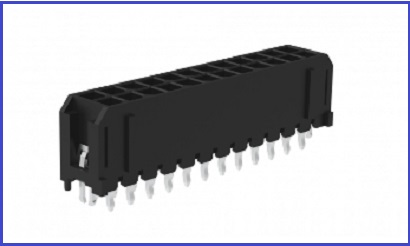

兼容/替代Amphenol|安费诺|G88MP24102KEU 线对板连接器是一款:Micro Power Plus 3.0 连接器系统 - G88MP 系列, 线对板连接器, 垂直, 双排, 3.0mm 间距, 24 位置, 100μin 锡, 3.20mm 尾端长度, LCP, 黑色, TRAY。【世贸电子产品网提供Amphenol|安费诺|G88MP24102KEU 线对板连接器替代品】

------------------------------------------------------------------------------------------------

1、兼容/替代Amphenol|安费诺|G88MP24102KEU 线对板连接器相关产品属性:

颜色 - 塑胶壳Black
Current RatingUp to 12.5A
Current Rating per Contact6A-15A
Durability (Mating cycles)30
塑胶壳材料LCP
Number of Contacts24
Number of Rows2
工作温度范围-40
定向Vertical
包装Tray
Pitch3.00mm (0.118in)
Plating Contact area2.54μm (100μin) Tin
产品系列Micro power plus series
阻抗(触点)10mΩ Max
阻抗(绝缘)1000MΩ Min
Retention FeatureN/A
Tail Length3.20mm (0.126in)
Ul档案号E178513
额定电压250V

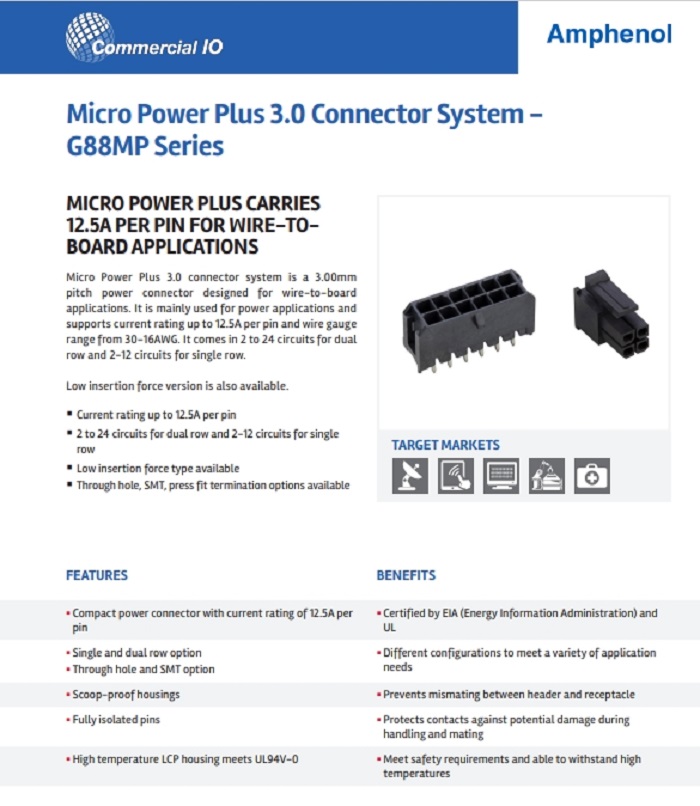

------------------------------------------------------------------------------------------------2、兼容/替代Amphenol|安费诺|G88MP24102KEU 线对板连接器产品规格书:

------------------------------------------------------------------------------------------------

3、兼容/替代Amphenol|安费诺|G88MP24102KEU 线对板连接器产品料号/型号清单:

G88MP04102KEUG88MP06102KEUG88MP08102KEUG88MP10102KEUG88MP12102KEU
G88MP14102KEUG88MP16102KEUG88MP18102KEUG88MP20102KEUG88MP22102KEU
G88MP24102KEU

------------------------------------------------------------------------------------------------

4、线对板连接器-提供兼容Amphenol|安费诺|G88MP24102KEU 线对板连接器替代品
